| Brand Name : | Eryin |
| Price : | $16.00/pieces 2-499 pieces |
Physical parameters | ||
Scan mode | Auto-sensing/continuous scanning | |
Communication interface | USB-HID keyboard, USB-COM virtual serial port, RS232 serial port | |
Interface type | USB TYPE-B | |
Prompt mode | Buzzer, LED light | |
How it is set up | Press the key to set and manually scan the setting code in turn | |
Housing material | ABS+PC | |
Cable standard | Straight line 1.3m | |

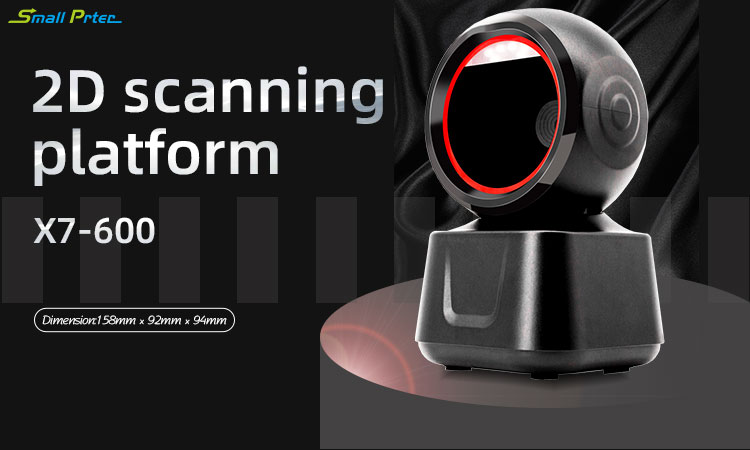

Exterior dimensions | 158 mm×92mm×94mm(product);1 70 mm×1 15 mm×115 mm(Outer packaging) | |
Weight | Net weight 335g; Gross weight 345g | |
Performance parameters | ||
Scan type | CMOS global exposure | |
Resolution | 640*480 | |
Light source | 617nm red LED | |
Scan angle | ± 60°, ±54°, 360° (left and right, front and back, turn). | |
Scan rate | 120 times/sec | |
Field of view | 48° (H) x 30° (V) | |
Printing contrast | Minimum 20%. | |
1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93,
Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite 2D: QR Code, Data Matrix (DM), PDF417, Han Xin, Micro PDF417, Micro QRCode, MaxiCode, Aztec Code, Code16K, support mobile screen reading | ||
Minimum resolution | 4thousand | |
Electrical parameters | ||
Input voltage | DC 5V±10% | |
Current | Working: 240 mAh; Standby: 190 mAh | |
Environment parameters | ||
Temperature | 0°C-50°C (working); -20°C~+70°C (storage). | |
Humidity | 5%-95% non-condensing | |
|
|
